Recknagel Weaver/Picatinny Mounts for Zeiss Rail (QD Lever)
Recknagel Weaver/Picatinny Mounts for Zeiss Rail (QD Lever)
Recknagel Weaver/Picatinny Mounts for Zeiss Rail with 45º
45º Angle is familiar with the modern Zeiss (ZM), Docter (Z Rail), Meopta (MR Rail), Minox (IS Rail), Leica (Leica Rail) and Schmidt & Bender (LMZ) Rail Scopes.
with QD Polyform Levers
Height of Base - 7mm
Contents Supplied - 2x Tip-Off Mounts, 1x Wrench
Code Ref: 57545-0700

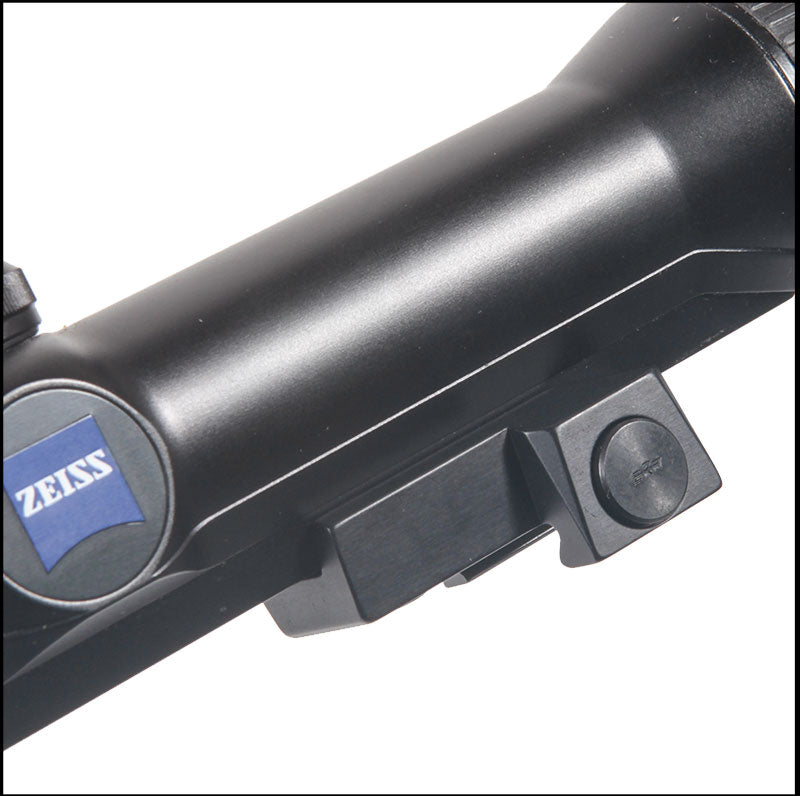

These Tip-off mounts are designed to be used with the Zeiss Rifle Scopes, especially the Zeiss Diarange and all scopes with 45º angle. The mounts give a low overall height with the height of the bases being only 7mm. The 2 Tip off blocks have a weaver/picatinny profile and are mounted onto the rail and tightened using Quick Detachable Polyform Levers.
Fitting Tips:
- Remove the two 45º Mounting Blocks from the Recknagel Mounts
- Drop the 45º Mounting Blocks into the Zeiss Rail slot, with the wider part of the block in first.
- Align the holes of the base component of the Recknagel Mount with the 45º Mounting Blocks, then fit the screw going through the Recknagel Mount into the 45º Mounting Block.
- Tighten the screws up fully for both of the 45º Mounting Blocks. Then afterwards slacken them off by a 1/8 turn.
- You are now able to slide the mount into position to suit the picatinny rail or weaver bases.
- We would advise to position the mount on the rail or bases one at a time, tighten up the 45º Mounting Block screws on one of the bases first.
- Once this is secured, repeat for the second base. Carefully align the second base in position and lift it off the rail/weaver base in order to tighten up the 45º Mounting Blocks.
Please Note: If these mounts are not available from stock, we will need to order them from Recknagel. Delivery will usually take 14-21 days.
