Recknagel Picatinny Rail for Haenel Jager 10

Recknagel Rail for Haenel Jager 10
Black anodised Aluminium

There are two Options for the Haenel Jager 10:
Jager 10 Up to Serial No. JX-000920 - [57050-001W]
Jager 10 After Serial No. JX-000920 - [57050-002C]

Height of Base - 6.5mm
Code - 57050-001W/57050-002C
Screw Thread - 6-48

Contents Supplied
- 1 x Black Anodised Rail and Screws

This Picatinny/Weaver Rail is precision made from aluminium by Recknagel. It comes complete with pre-drilled holes to fit the rifle action exact (see measurement diagram), with screws and wrench key to mount to your rifle.

Jager 10 - [57050-001W]
A: 21.9mm / B: 113.9mm / C: 15.4mm

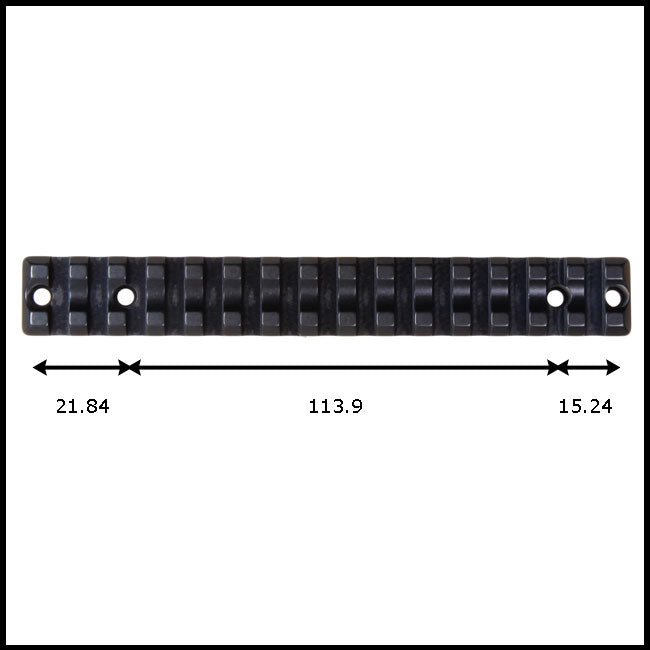

Jager 10 - [57050-002C]
A: 21.84mm / B: 113.9mm / C: 15.24mm
