Recknagel

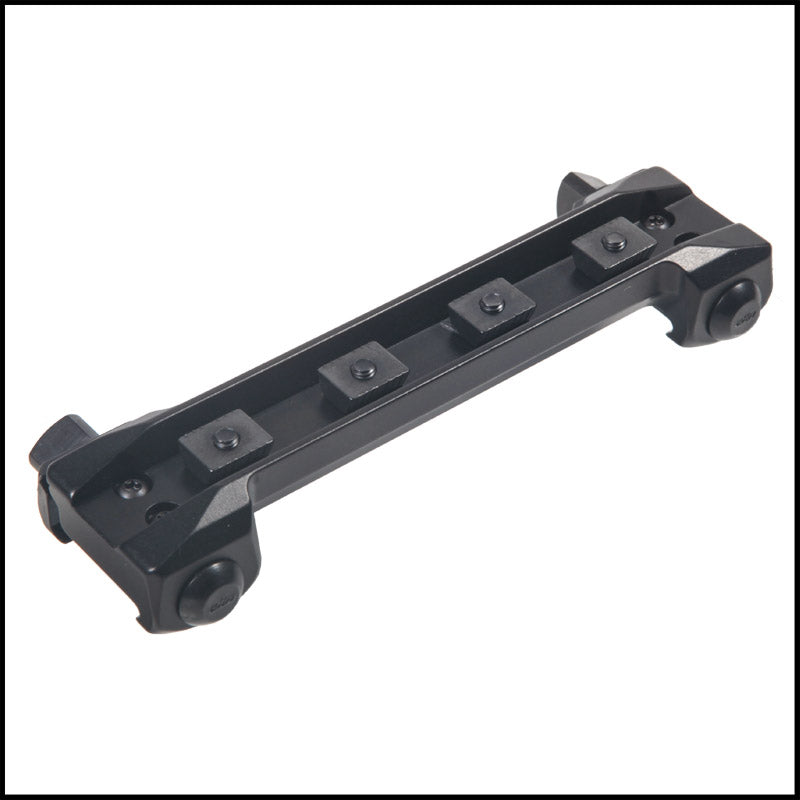

Recknagel One Piece Tip-off Mounts for Zeiss Rail

Recknagel One Piece Tip-off Mounts for Zeiss Rail

SKU:57045-0110

Regular price £269.75 GBP
Regular price Sale price £269.75 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Recknagel One Piece Tip-Off Mounts for Zeiss
45º Angle is familiar with the modern Zeiss (ZM), Docter (Z Rail), Meopta (MR Rail), Minox (IS Rail), Leica (Leica Rail) and Schmidt & Bender (LMZ) Rail Scopes.
with Tri-Nut Fastening

Height of Base - 8mm
Contents Supplied - 1 x Tip-Off Mount, Tri-Nut Wrench, Zeiss Block Torx Wrench
Distance between clamps - 110mm
Code Ref: 57045-0110

This is a one piece tip-off picatinny mount is designed to be used for Zeiss Rail. It will fit the modern Zeiss ZM Rail or 45º System. This system can also be found in Docter (Z Rail), Meopta (MR Rail), Minox (IS Rail), Leica (Leica Rail) and Schmidt & Bender (LMZ) Rail Scopes. The mount give a low overall height with the height of the base being only 8mm. The mount has a polyform lever for easy tightening and attachment without needing a wrench.

Fitting Tips:
- Remove the two 45º Mounting Blocks from the Recknagel Mounts
- Drop the 45º Mounting Blocks into the Zeiss Rail slot, with the wider part of the block in first.
- Align the holes of the base component of the Recknagel Mount with the 45º Mounting Blocks, then fit the screw going through the Recknagel Mount into the 45º Mounting Block.
- Tighten the screws up fully for both of the 45º Mounting Blocks. Then afterwards slacken them off by a 1/8 turn.
- You are now able to slide the mount into position to suit the picatinny rail or weaver bases.
- We would advise to position the mount on the rail or bases one at a time, tighten up the 45º Mounting Block screws on one of the bases first.
- Once this is secured, repeat for the other mounting blocks. Carefully align the second base in position and lift it off the rail/weaver base in order to tighten up the 45º Mounting Blocks.

Please Note: If these mounts are not available from stock, we will need to order them from Recknagel. Delivery will usually take 14-21 days.
