Recknagel Extended Picatinny Rail for CZ 550 Standard

Recknagel Picatinny Aluminium Rail
for CZ Standard (19mm Dovetail) - Rear Extended

Black anodised - Will fit CZ 550 models, and also older version ZKK 600. This rail won't fit onto Magnum Calibres.
(If you need mounts for the 425, contact us on 01978 66 00 01).

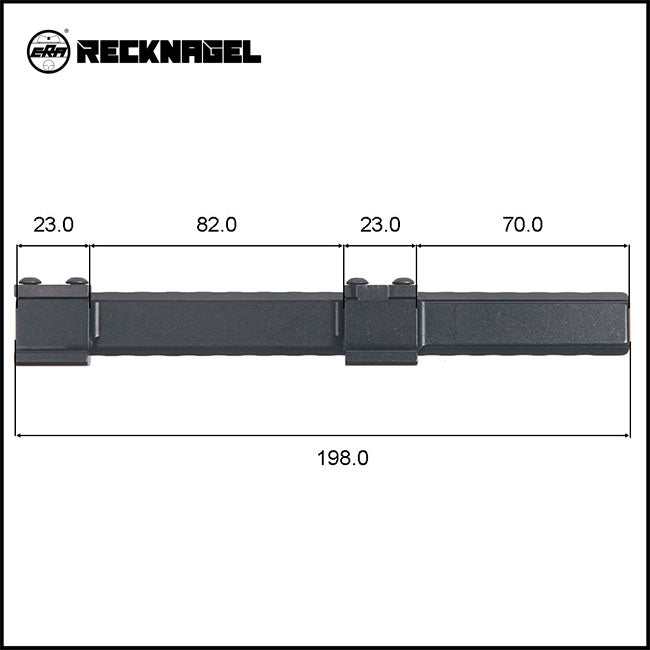

Height of Base - 12mm
Length of Rail - 198mm
Extends Rearwards - 70mm from Rear Base
Code: - 57050-1962

Contents Supplied
- 1x Black Anodised Rail, Screws and Wrench
This rail fits the CZ (Brünner) Rifle with Dovetail attachment. The space between the dovetails is 82.5mm (3.25"). The distance from the front of the front dovetail to the rear of the rear dovetail is 127mm (5"). The picatinny extends 70mm rearwards from the rear base.

Note: This rail will not fit onto Magnum Calibres.

105mm space between center A and center C
