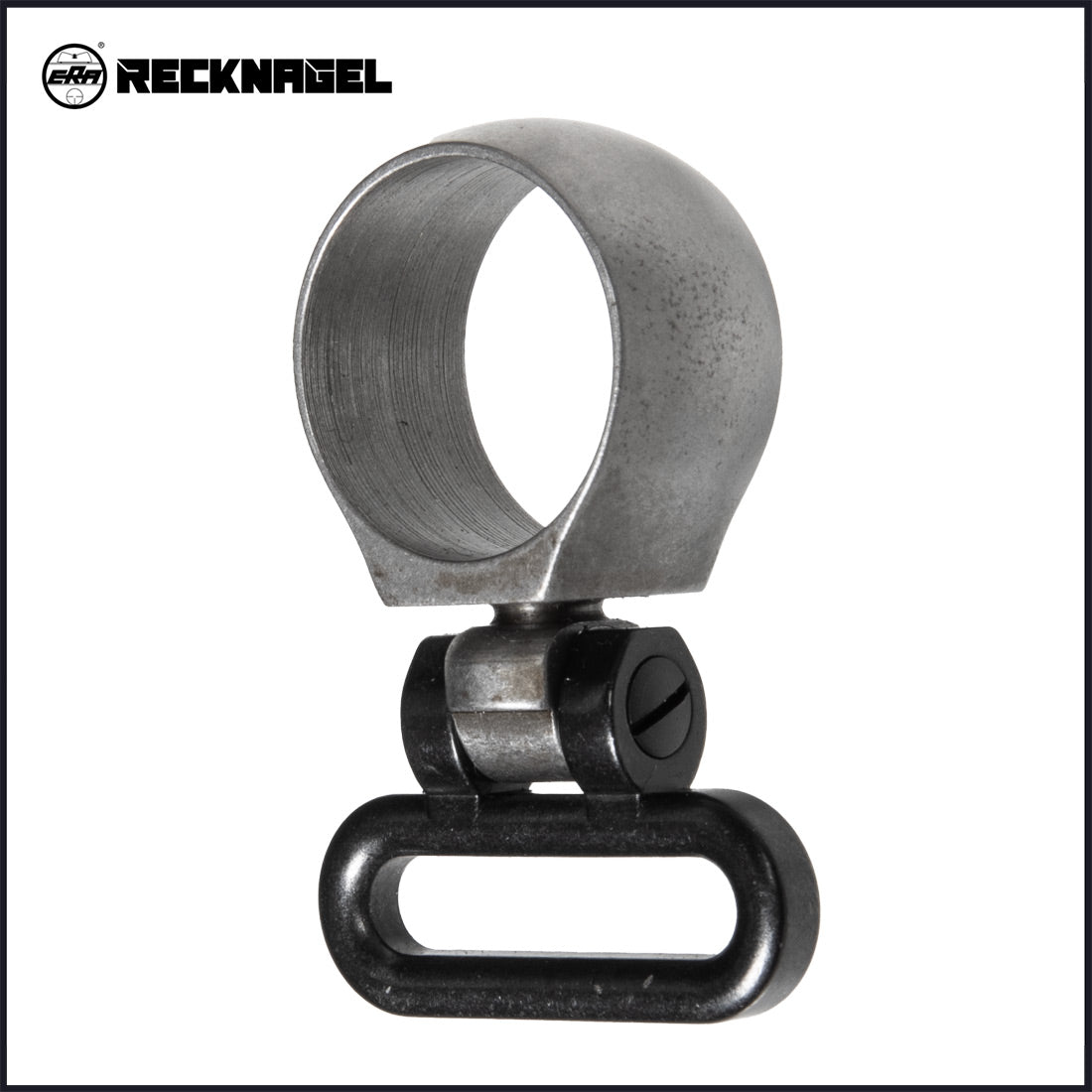

Recknagel Barrel Band with Sling Swivel

Recknagel Barrel Banded Sling Swivel Ring for Various Diameter Barrels

This Standard Banded sling swivel ring, made from steel, is to be fitted to a barrel using soft soldered fixing. The swivel comes complete with the barrel band and uses a 3.0mm pin with a 6mm head. A choice of two loop sizes are available for various sling widths. This part will require some gun-smithing to fit and solder the band to the barrel, so feel free to contact us on 01978 66 00 01 for details.

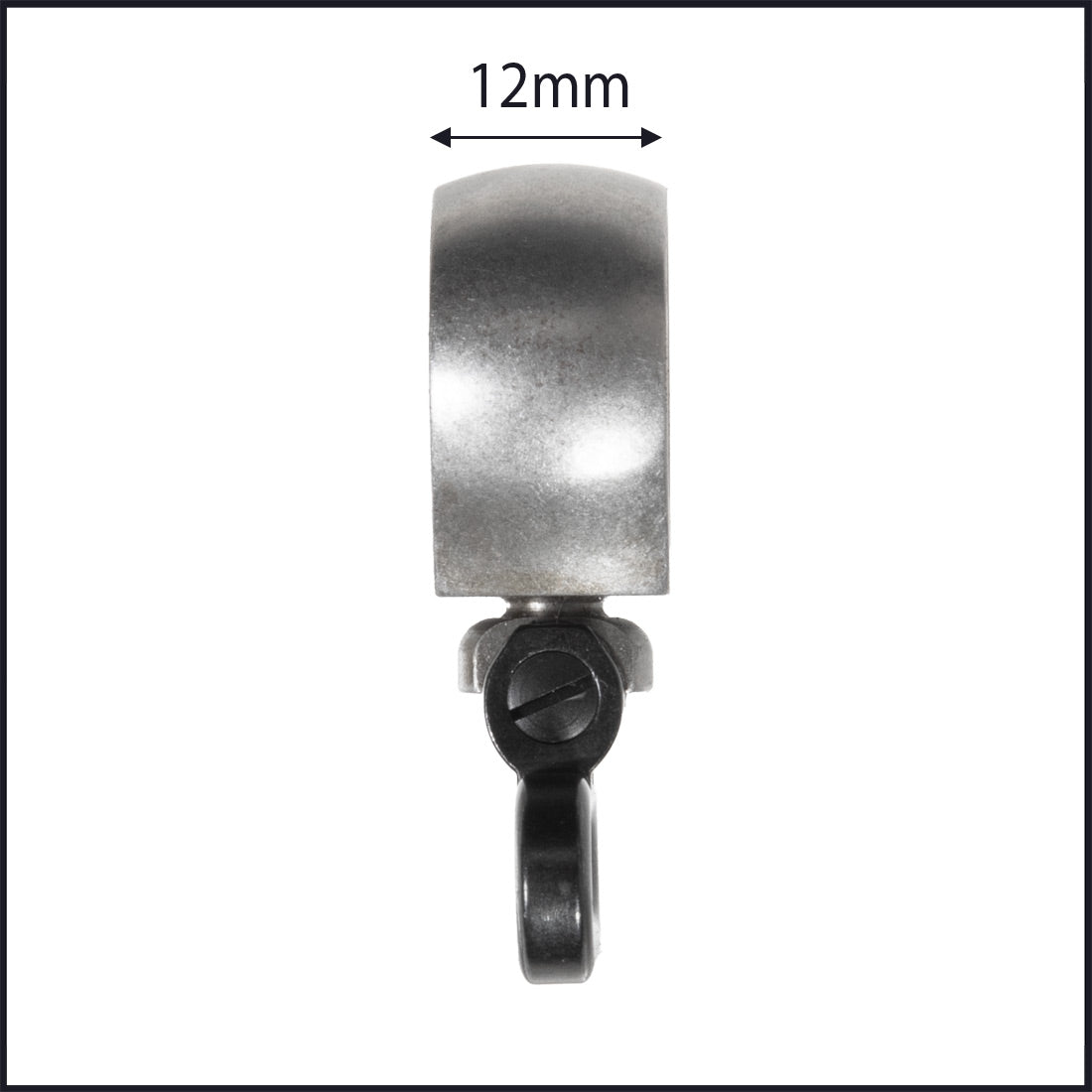

Length of Band: 12mm
Swivel Hole: 3.0mm ø

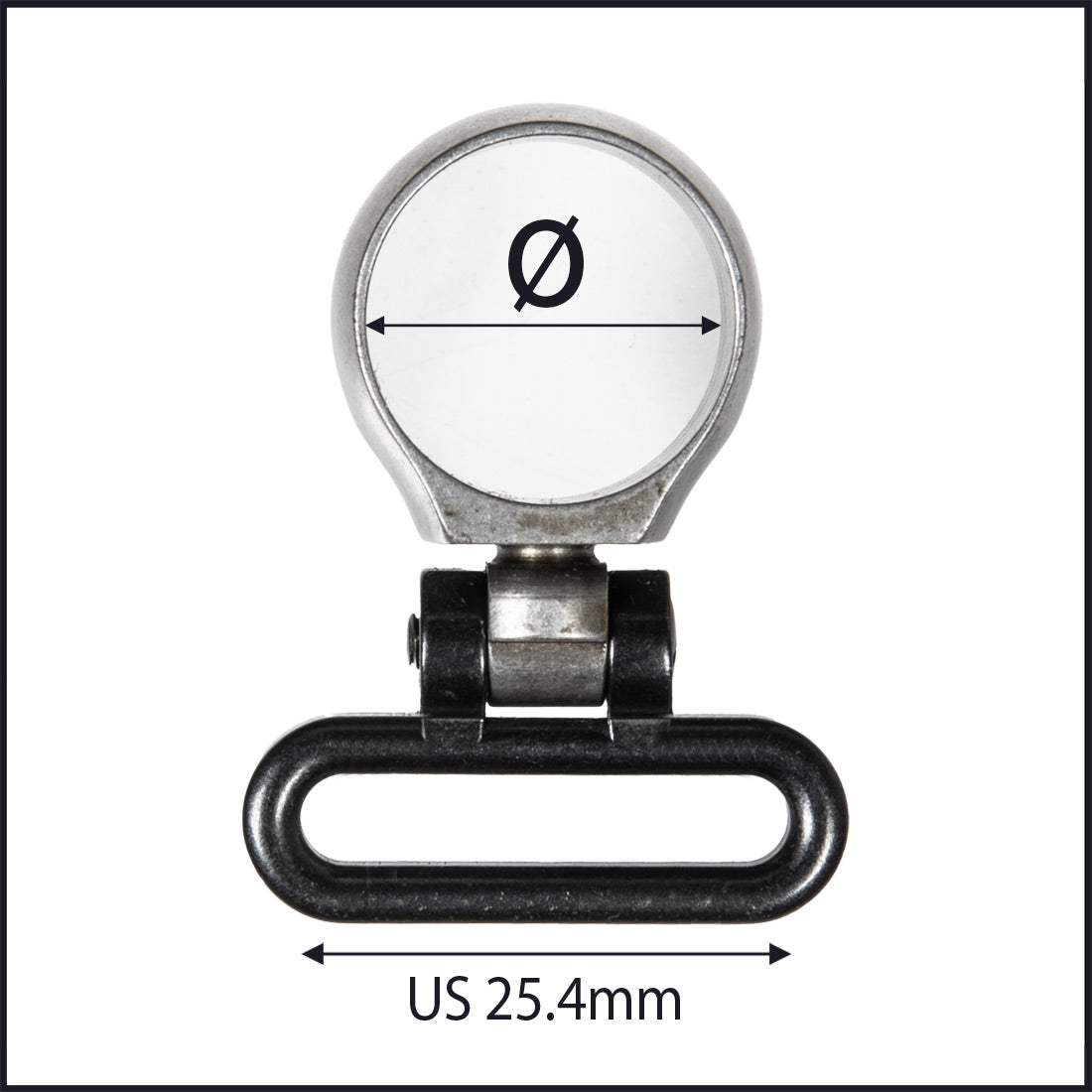

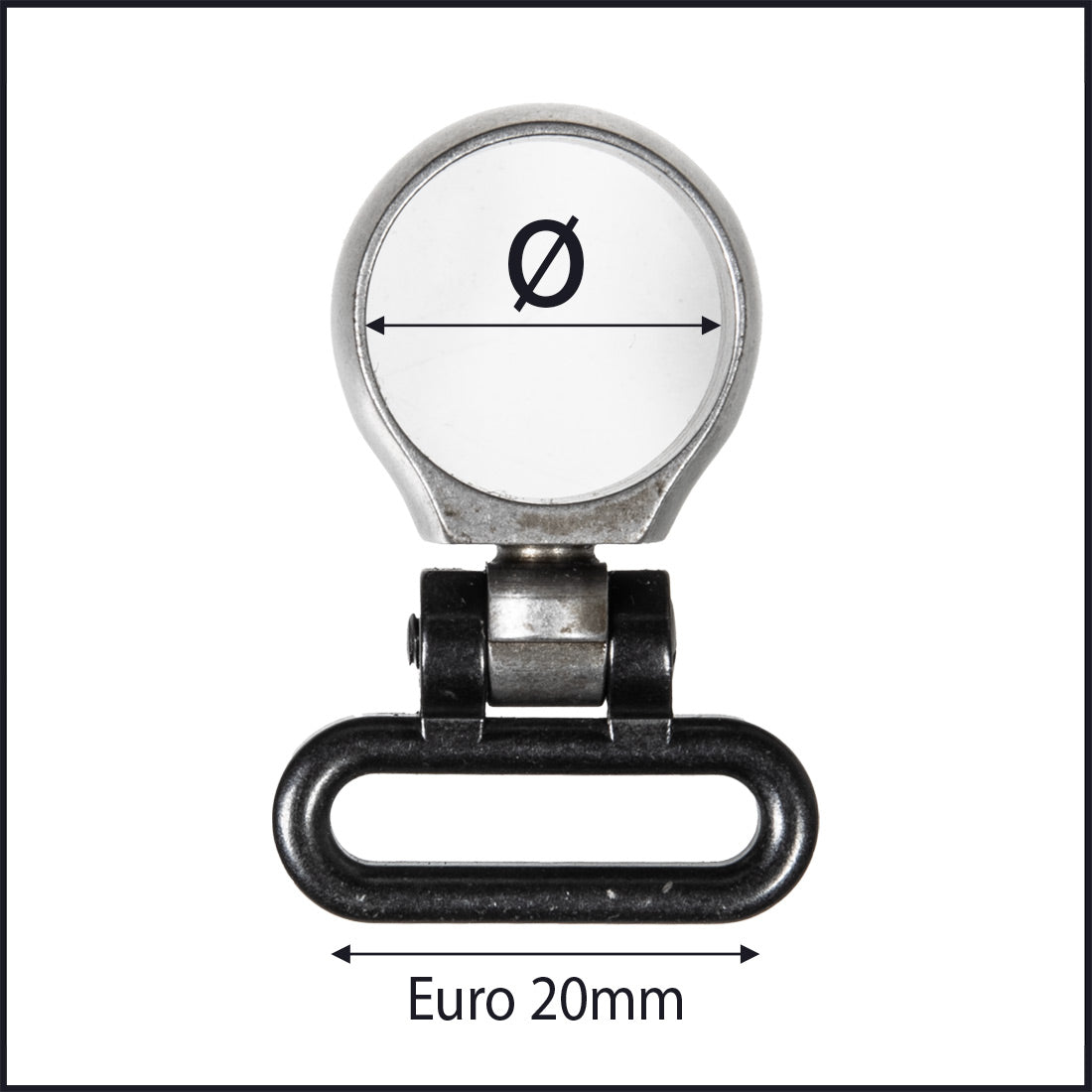

Swivel Loop Options: Euro 20mm / US 25.4mm
Material: Steel
Code Ref: 22605-....

Only one part supplied

This part may not be in stock. If this is the case, we will find out the delivery time and confirm this with you before we place the order. Delivery times can vary.

Options available Euro Swivel (20mm):
16,0 ø - 22605-1160
16,5 ø - 22605-1165
17,0 ø - 22605-1170
17,5 ø - 22605-1175
18,0 ø - 22605-1180
18,5 ø - 22605-1185
19,0 ø - 22605-1190
19,5 ø - 22605-1195
20,0 ø - 22605-1200
20,5 ø - 22605-1205
21,0 ø - 22605-1210

Options available US Swivel (25.4mm):
16,0 ø - 22605-3160
16,5 ø - 22605-3165
17,0 ø - 22605-3170
17,5 ø - 22605-3175
18,0 ø - 22605-3180
18,5 ø - 22605-3185
19,0 ø - 22605-3190
19,5 ø - 22605-3195
20,0 ø - 22605-3200
20,5 ø - 22605-3205
21,0 ø - 22605-3210

The Recknagel Catalogue has a wide range of products available. If you would like any help with parts or fitting, feel free to call us on 01978 66 00 01. We can offer advise on the best possible solution.
