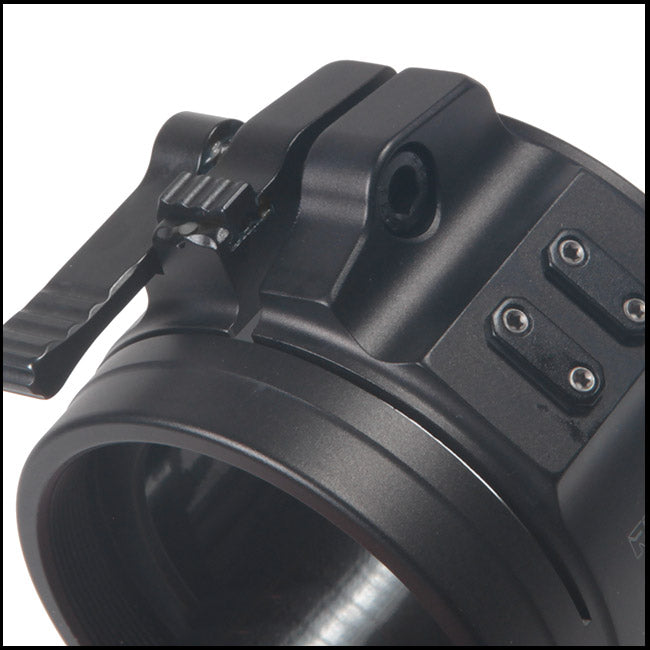

Recknagel Adaptor for Thermal and Night Vision Devices
For Scopes with Outer Objective Diameter - 56mm Weight - 88 g Part Number - 03681-5600
Fits the following Scopes: - Swarovski Z8 i 2-16 x 50 - Swarovski Z6 i 2-12 x 50i - Swarovski Z6 i 3-18 x 50 - Swarovski Z6 i 5-30 x 50 - Swarovski 3.5-28 x 50 - Zeiss V8 1.8-14 x 50 - Zeiss Victory HT 2.5-10 x 50 - Zeiss V6 2-12 x 50 - Zeiss V6 3-18 x 50 - Zeiss V6 5-30 x 50 - Zeiss V4 6-24 x 50 + Plus all others with a 56mm Outer Objective Lens See the List of Available Recknagel Parts for the Leica Calonox for different scopes here
This adapter allows for a reliable fixation of thermal and night vision devices to a scope, a camera or any other daylight optical devices. Here is a overview of models which this will fit:
Standard connection thread M52 x 0.75 - LEICA CALONOX SIGHT - DEDAL 540/541/542/546/552 - JAHNKE DJ-8 NSV - LAHOUX D-545 - LV-81 and others
SPECIAL ORDER: If we do not have this part in inventory we will have to order it from Recknagel, with a delivery estimated at 10-14 days. We will contact you if this is the case.
Features: - High-grade aluminium, matte black anodized - Milled from solid aluminium - Integrated connecting thread M52 x 0.75 suited for many models - Reducer rings M46 x 0.75 and M33.5 x 0.75 also available - Reliable locking with easy-to-grip safety lever - Safety catch prevents unintentional opening of the lever - Universal interface for attaching optical accessories (only with 48 mm and larger models) - Non-slip plastic insert facilitates a 100% tight fit and protects the objective lens - Padded cushioning points on the front side allow for a silent installation
Available in different sizes: 03681-3000 - For 30mm Objective Lens 03681-4800 - For 48mm Objective Lens 03681-6200 - For 62mm Objective Lens
Note: When using the adapter on a scope please respect all applicable rules and read the enclosed fitting instructions.
