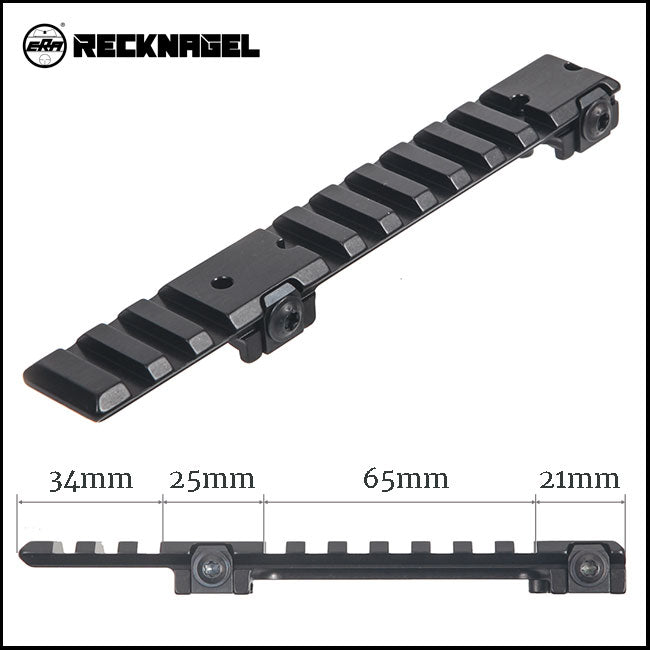

Recknagel 11mm Dovetail to Picatinny Rail Adapter
Recknagel 11mm Dovetail to Picatinny Rail Adapter
Recknagel Picatinny Aluminium Rail for 11mm Dovetail
Black anodised
Height (BH) - 10.5mm
Length - 145mm
Usable length of Rail - 110mm
Distance between Clamps - 70mm
Weight - 68g
Code - 57050-1011
Contents Supplied
- 1x Black Anodised Rail,
- 1 x Wrench
Made of high strength aluminum and black anodized finish. The rail attaches to a 11mm dovetail with two side clamps, tightened with the included Torx wrench. The rail is fitted with a single recoil stud on the underside, which can be fitted to any one of 4 pre drilled locations, or removed completely if the rifle has no provision for a recoil stud.
This scope mount part converts the 11mm dovetail to the stronger and widely used picatinny rail system.
There are a number of rifles this rail will fit, including: - Sako Quad with 11mm Dovetail
- Sako Finnfire & Finnfire II
- Sako Finnlight
- Weirauch HW Air Rifles with 11mm Dovetail (Check Dimensions of the clamps against your rifle)
- BRNO Models with 11mm Dovetail (Check Dimensions of the clamps against your rifle)
This rail fits all 11mm and 11.5mm dovetails.
