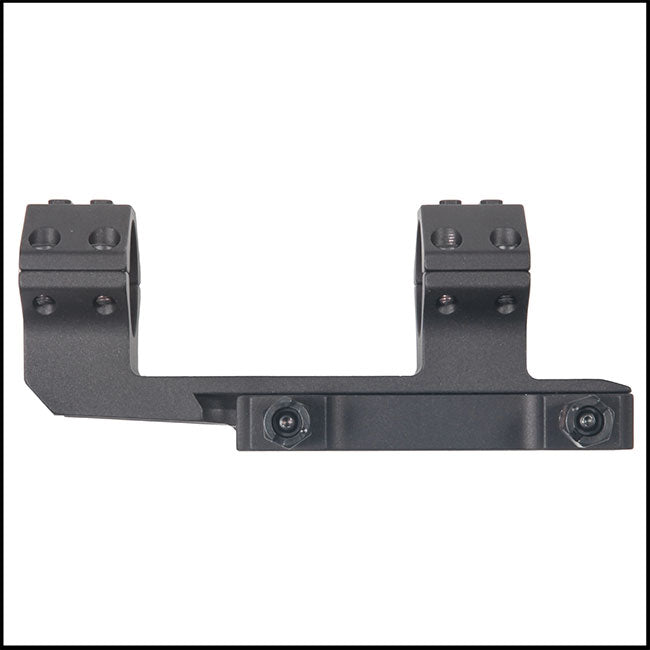

ERATAC Tactical Extended 30mm Ring Mount, Nut, 0 MOA

Tactical One Piece Extended Ring Mount

Ring Diameter - 30mm
Fixing Method - Hex Nuts
Height of Base Options (BH) - See Variations Below
MOA Options - 0 MOA
Contents Supplied - 1x One Piece Extended Ring Mount, Screws and wrench
Weight - From 258g

This one piece quick detachable mount is made from high grade aluminum and hard coated anodized according to Mil-Spec (Class III). NEW GEN-2 with lightweight nut system, up to 10% lighter!

High repeatability and precision created by the solid design. With locking nuts to fix the mount to the picatinny rail. Plus this mount features the Universal Interface system on the ring caps, to allow additional hardware to be mounted. The MOA of the mount is illustrated on the side of the mount. This mount is fixed onto the rail using nuts. Each nut has the recommenced torque settings.

The mounts with an extension of 2" and 3" are suited for the use on weapons of the type AR15. Mounts with a 2" extension are also suitable for the AR10.

See the measurements below:

All 30mm Variations Available:
-- 0 MOA Options
- T5023-0022 - 22mm BH / 0 MOA / A: 120mm / B: 70mm / G: 50mm / F: 10mm / Weight: 258 g
- T5023-0034 - 34mm BH / 0 MOA / A: 115mm / B: 65mm / G: 50mm / F: 22mm / Weight: 294 g
- T5033-0022 - 22mm BH / 0 MOA / A: 120mm / B: 70mm / G: 75mm / F: 10mm / Weight: 263 g

SPECIAL ORDER:
If we do not have this part in inventory we will have to order it from Recknagel, with a delivery estimated at 14-21 days. We will contact you if this is the case.

About ERATAC
In 2010, RECKNAGEL launched their line of tactical mounts and accessories for the civil sector and law enforcement under the brand name ERATAC. Decades of experience, as well as the continuous exchange with users, led to the steady expansion of our product range.

All ERATAC® products are manufactured according to military standards, thus meeting highest requirements, and have proven themselves on various weapons systems worldwide. A continuous investment led to computer-controlled systems of the latest generation, which guarantee 100% quality Made in Germany.

The ERATAC Catalogue has a wide range of products available. If you would like any help with parts or fitting, feel free to call us on 01978 66 00 01. We can offer advise on the best possible solution, and a high quality scope mounting service.
