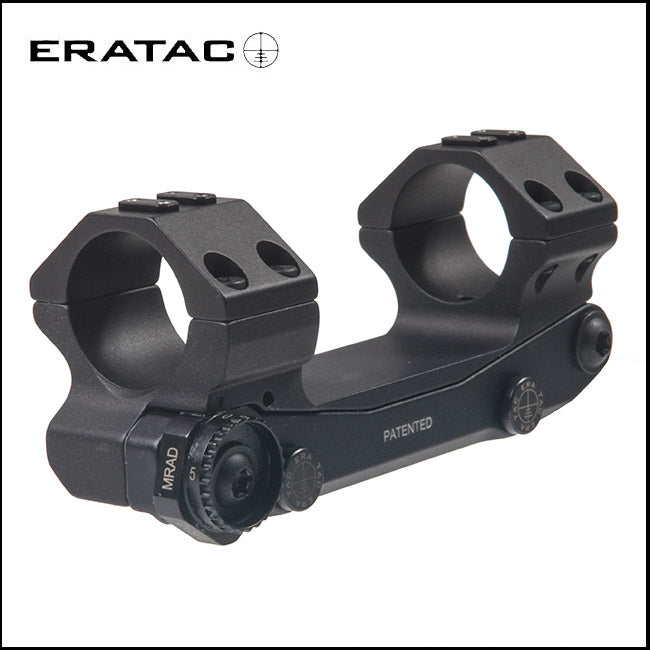

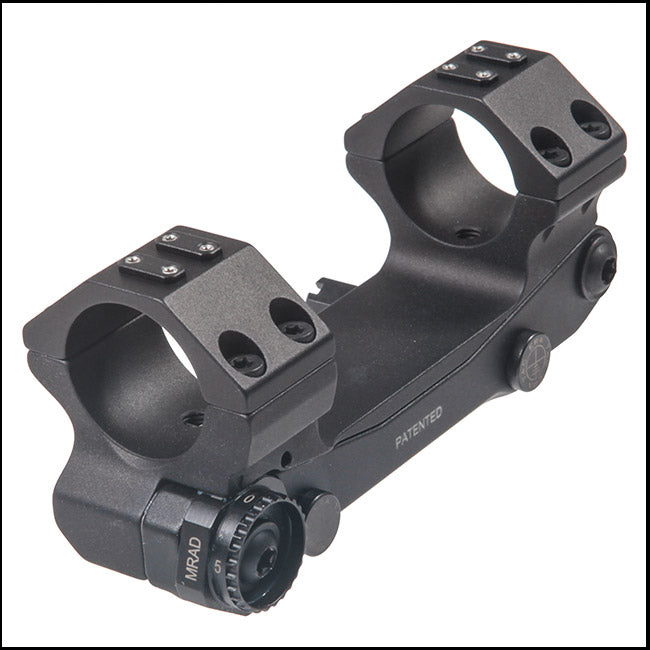

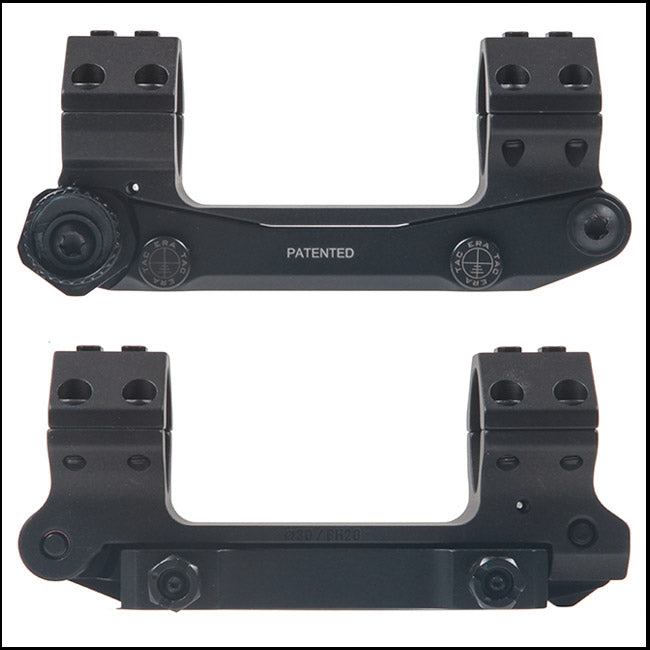

ERATAC Adjustable MRAD Inclination Picatinny Mount (Nut)

Adjustable MRAD Inclination One Piece Mount for Picatinny
Nut Version

Also Available in Quick Release Version

SPECIAL ORDER:
If we do not have this part in inventory we will have to order it from Recknagel, with a delivery estimated at 14-21 days. We will contact you if this is the case.

Height of Base (BH) - Various (See Options Below)
Contents Supplied - 1x One Piece Nut Mount, Adjustment Wrenches, MRAD data sheet
Weight: From 371g
Code Ref: T5073-....

Designed to fit the Picatinny system.

Modern telescopic sights have a wide range of magnification factors allowing the scope to be effectively used in various situations, from in close to very long distances. However, often the built-in range of elevation adjustment is not adequate to compensate for the bullet drop at all ranges from short to long.

To be able to effectively use the full range of the scope the installation of the latter has to be carried out at an optimum angle, depending on application.

This is what the latest generation of our ERATAC mounts with integrated inclination adjustment are designed to do.

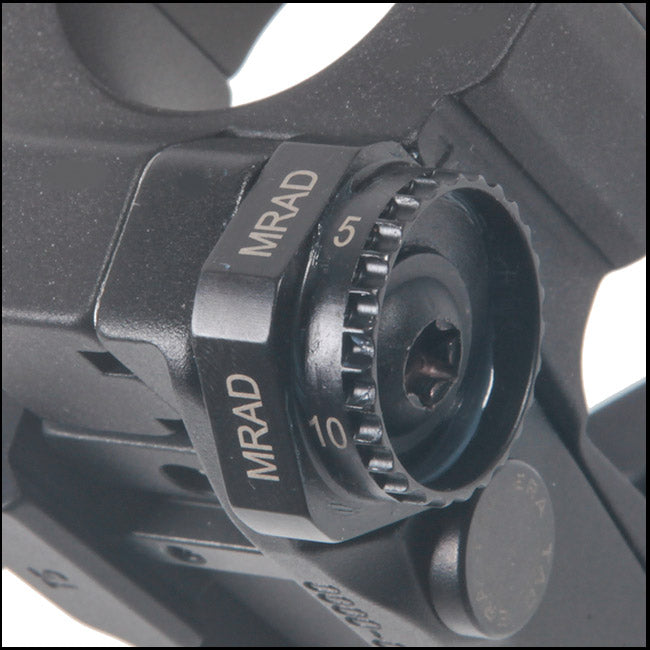

After loosening the cross bolts, the desired angle can be adjusted within a range of in steps of 5 between 0 - 20 mrad/MIL. by simply rotating the hand wheel. The mount and the scope can stay on the rifle.

Self-locking thread inserts ensure permanent and stable seating of both bolted connections. This robust and precise scope mount can easily compare with our ERA-TAC one-piece mounts and additionally offers the shooter the possibility to mount the scope with the required angle, depending on application.




See the full range of Variations available with Adjustable MRAD Inclination, all with either Nut or Quick Release attachments:

Nut Fixture Options:
T5073-0020 - ø30mm, 20mm BH, F=7mm, Weight: 345g
T5073-0025 - ø30mm, 25mm BH, F=7mm, Weight: 376g
T5074-0020 - ø34mm, 20mm BH, F=7mm, Weight: 351g
T5074-0025 - ø34mm, 25mm BH, F=8mm, Weight: 379g
T5074-0030 - ø34mm, 30mm BH, F=12mm, Weight: 404g
T5076-0022 - ø36mm, 22mm BH, F=7mm, Weight: 362g

About ERATAC

In 2010, RECKNAGEL launched their line of tactical mounts and accessories for the civil sector and law enforcement under the brand name ERATAC. Decades of experience, as well as the continuous exchange with users, led to the steady expansion of our product range.

All ERATAC products are manufactured according to military standards, thus meeting highest requirements, and have proven themselves on various weapons systems worldwide. A continuous investment led to computer-controlled systems of the latest generation, which guarantee 100% quality Made in Germany.

The ERATAC Catalogue has a wide range of products available. If you would like any help with parts or fitting, feel free to call us on 01978 66 00 01. We can offer advise on the best possible solution, and a high quality scope mounting service.
