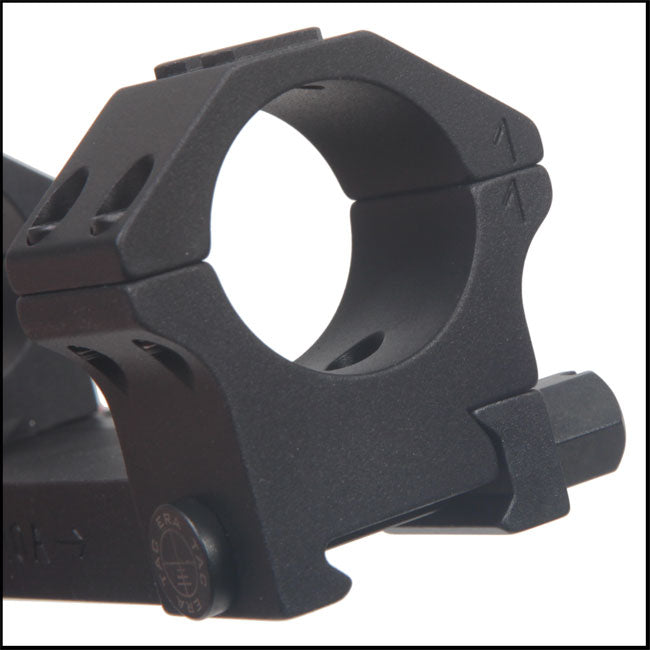

ERATAC 34mm One Piece Ring Mount (Nut)

34mm Tactical One Piece Ring Mount, Nut Fixing

Also Available in 34mm Rings Quick Release Fixing.

SPECIAL ORDER:
If we do not have this part in inventory we will have to order it from Recknagel, with a delivery estimated at 14-21 days. We will contact you if this is the case.

Ring Diameter: 34mm
Weight: 275g
Height of Base Options (BH)
- 11mm / 13mm / 17.5mm / 21.5mm / 25mm / 31mm
MOA Options
- 0 MOA / 20 MOA
Contents Supplied
- 1x One Piece Mount, Screws and wrench
Code Ref: T5014-....

This one piece quick detachable mount is made from high grade aluminum and hard coated anodized according to Mil-Spec (Class III). NEW GEN-2 with lightweight nut system, up to 14% lighter!

High repeatability and precision created by the solid design. With locking nuts to fix the mount to the picatinny rail. Plus this mount features the Universal Interface system on the ring caps, to allow additional hardware to be mounted. The MOA of the mount is illustrated on the side of the mount. This mount is fixed onto the rail using nuts. Each nut has the recommenced torque settings. The ring caps are numbered to each base to ensure an accurate mount.

See the measurements below:

All Models: A: 120mm / B: 70mm / C: 100mm / D: 34mm / E: 125mm / F: Varies, see below

All 30mm Variations Available:
--- 0 MOA Options
- T5014-0013 - 34mm Rings, 13mm BH, 0 MOA / F: 7.6mm
- T5014-0017 - 34mm Rings, 17.5mm BH, 0 MOA / F: 9.8mm
- T5014-0021 - 34mm Rings, 21.5mm BH, 0 MOA / F: 8.5mm
- T5014-0025 - 34mm Rings, 25mm BH, 0 MOA / F: 12.0mm
- T5014-0031 - 34mm Rings, 31mm BH, 0 MOA / F: 8.0mm

--- 20 MOA Options
- T5014-2013 - 34mm Rings, 13mm BH, 20 MOA / F: 7.0mm
- T2014-2019 - 34mm Rings, 19.5mm BH, 20 MOA / F: 11.0mm
- T5014-2023 - 34mm Rings, 23mm BH, 20 MOA / F: 8.2mm
- T5014-2027 - 34mm Rings, 27mm BH, 20 MOA / F: 11.0mm
- T5014-2033 - 34mm Rings, 33mm BH, 20 MOA / F: 8.8mm

About ERATAC

In 2010, RECKNAGEL launched their line of tactical mounts and accessories for the civil sector and law enforcement under the brand name ERATAC. Decades of experience, as well as the continuous exchange with users, led to the steady expansion of our product range.

All ERATAC products are manufactured according to military standards, thus meeting highest requirements, and have proven themselves on various weapons systems worldwide. A continuous investment led to computer-controlled systems of the latest generation, which guarantee 100% quality Made in Germany.

The ERATAC Catalogue has a wide range of products available. If you would like any help with parts or fitting, feel free to call us on 01978 66 00 01. We can offer advise on the best possible solution, and a high quality scope mounting service.
