Contessa, Quick Detachable Mount for Picatinny Designed for the ATN 4K Night Vision Scope
Length: 160mm Length of Picatinny on Ring Cap: 35mm Height with Rings (BH): 18.5mm Height without Rings (BH): 12.5mm Weight: 275g Code: SBP10 Extends Backwards from Rear Lug: 65mm Distance Between Rings: 109mm
Materials: - Non Moving Parts: Hard Anodised Light Alloy called Ergal 7075 - Moving Parts: Hardened Compound Steel - Complete with screws for mounting the Pulsar

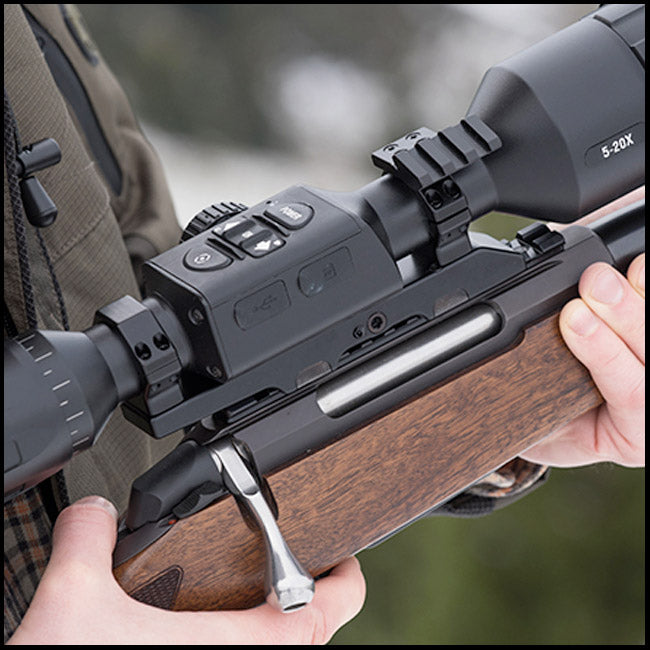

The Contessa Quick Release Mount for ATN 4K features two 30mm Rings spaced perfectly apart to be able to mount the scope. The front ring has a Universal Interface Ring Cap with a 35mm Picatinny Rail offset to the one side, to be able to mount a UV Lamp. This ring cap can be swapped with the rear ring cap and the section of picatinny mounted to the right of left side.
The mount will fit any existing picatinny rail and uses a solid recoil lug bar on the underside of the mount, with a quick release lever to lock the rail onto the picatinny rail. Due to the quick release lever being set at the same tension when attached, the mount retains the same solid mount each time you fit it back on to the picatinny rail. Although the method of attachment is highly accurate, due to the nature of the picatinny system, it may not always be possible to achieve 100% repeatable zero depending on the mounting procedure, but the accuracy will certainly be within 1 MOA. This is common throughout the whole Contessa Quick Release series.
This QD system allows you to interchange multiple scopes on a single rifle, and even change a single scope to different rifles in seconds using the Contessa system.
