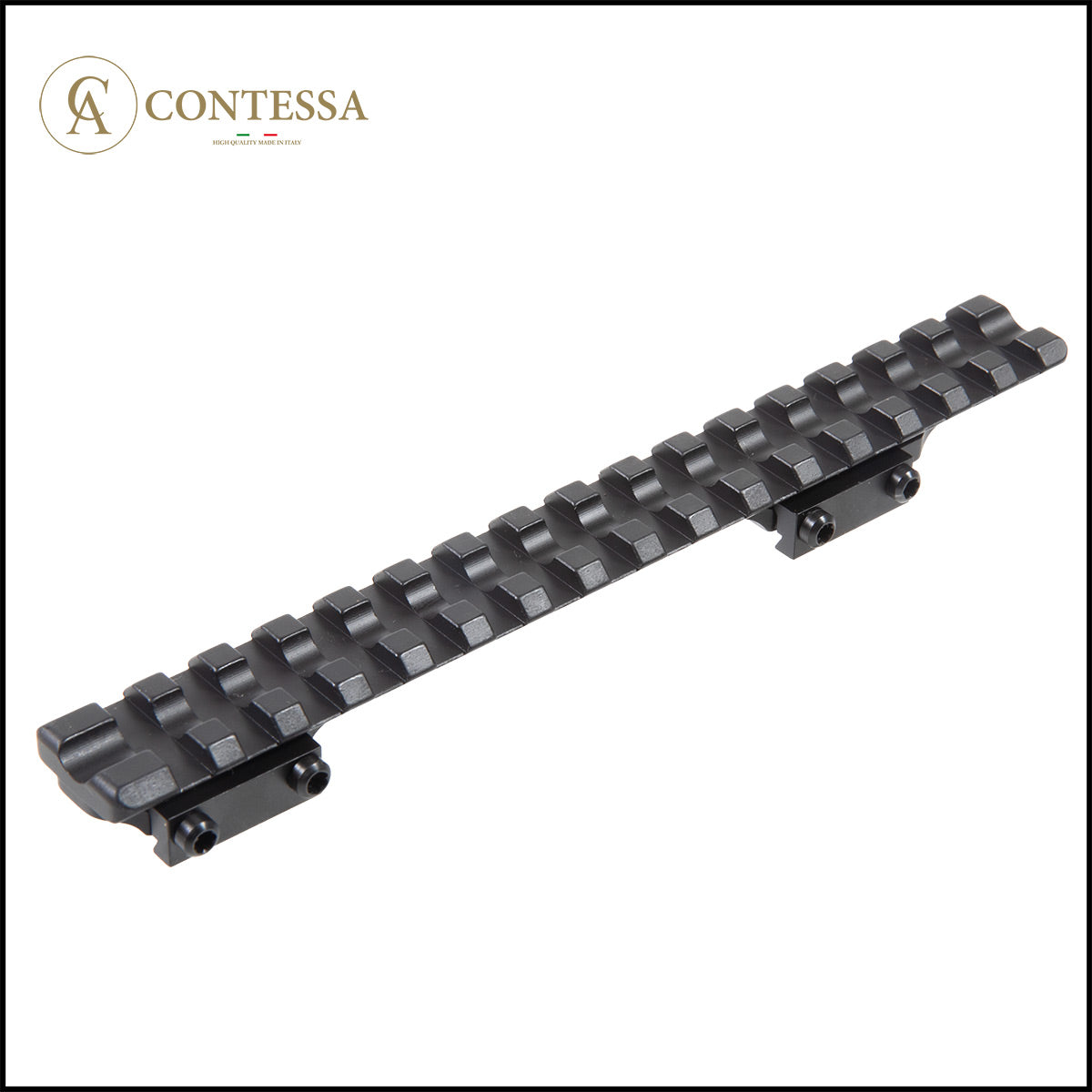

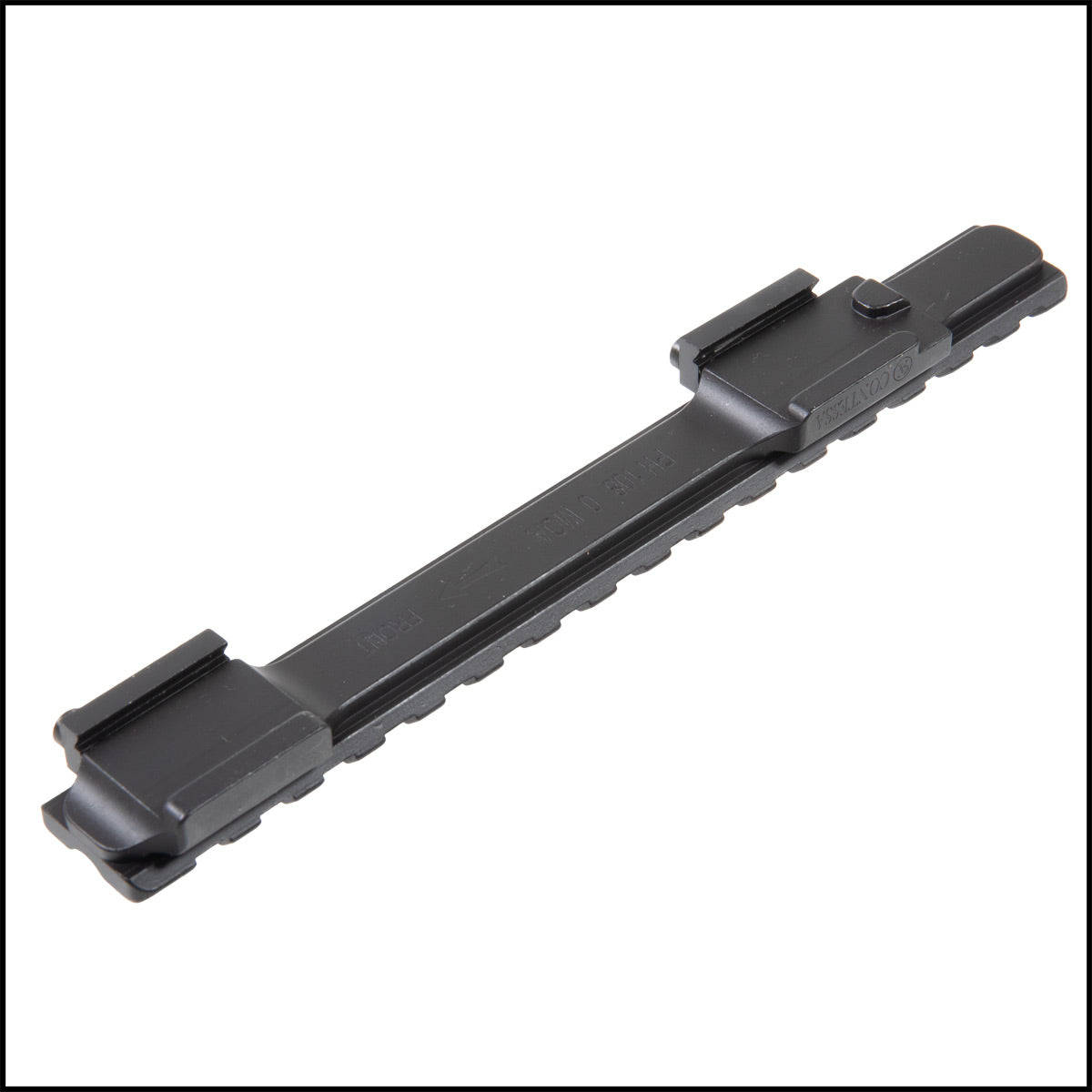

Contessa Picatinny Rail for Sako 90 Short

Contessa Picatinny Rail for Sako 90 Short
With 0 MOA
For Sako 90 Models with 17mm Dovetail Only.
Fits Calibres: 22-250 Rem / .243 Win / .260 Win / .308 Win / 7mm-08 Rem
(Please always double check the action size as this is a guide for the action size)

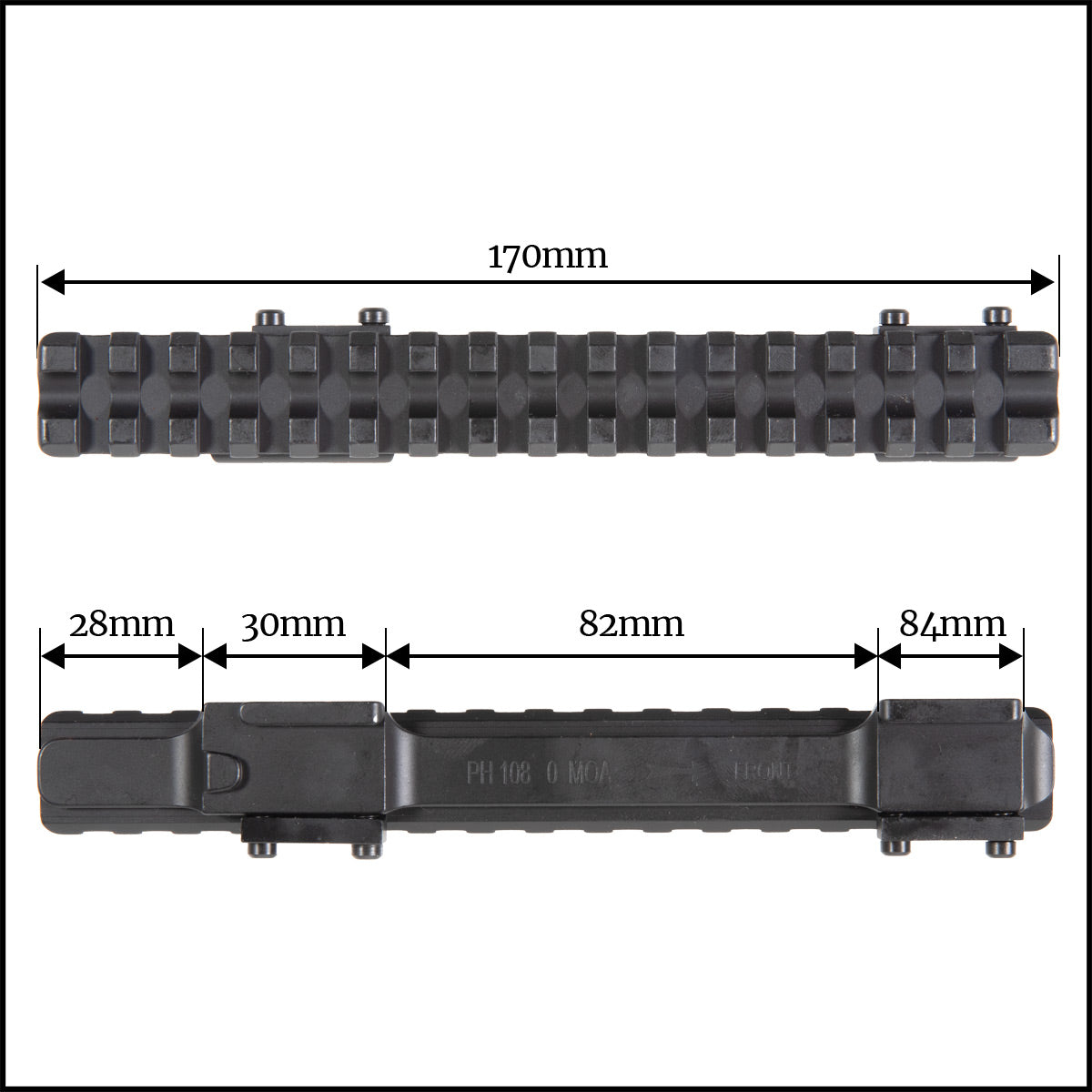

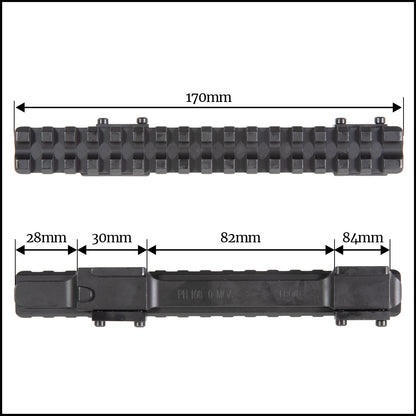

Rail Length - 170mm
Distance between Bases - 82mm
Height (BH) - 12.5mm
MOA - 0 MOA
Material - Steel
Code Ref - PH108

Contents Supplied:
- 1x Steel Rail,
- 2x Spare Screws,
- Wrenches,

Distance Spacing: (distances between bases)
30mm (Dovetail Base) / 82mm / 24mm (Dovetail Base)

This Steel Picatinny Rail is precision made by Contessa Alessandro & C. s.n.c. The mount is precision made to fit the Sako 90 with 17mm Dovetail System. Supplied as a complete rail to fit the correct action size. PLEASE NOTE: There are Sako 90 models with integral picatinny bases, this rail does not fit this, this uses the Contessa Picatinny Rail Sako S20 / Sako 90

Fitting:

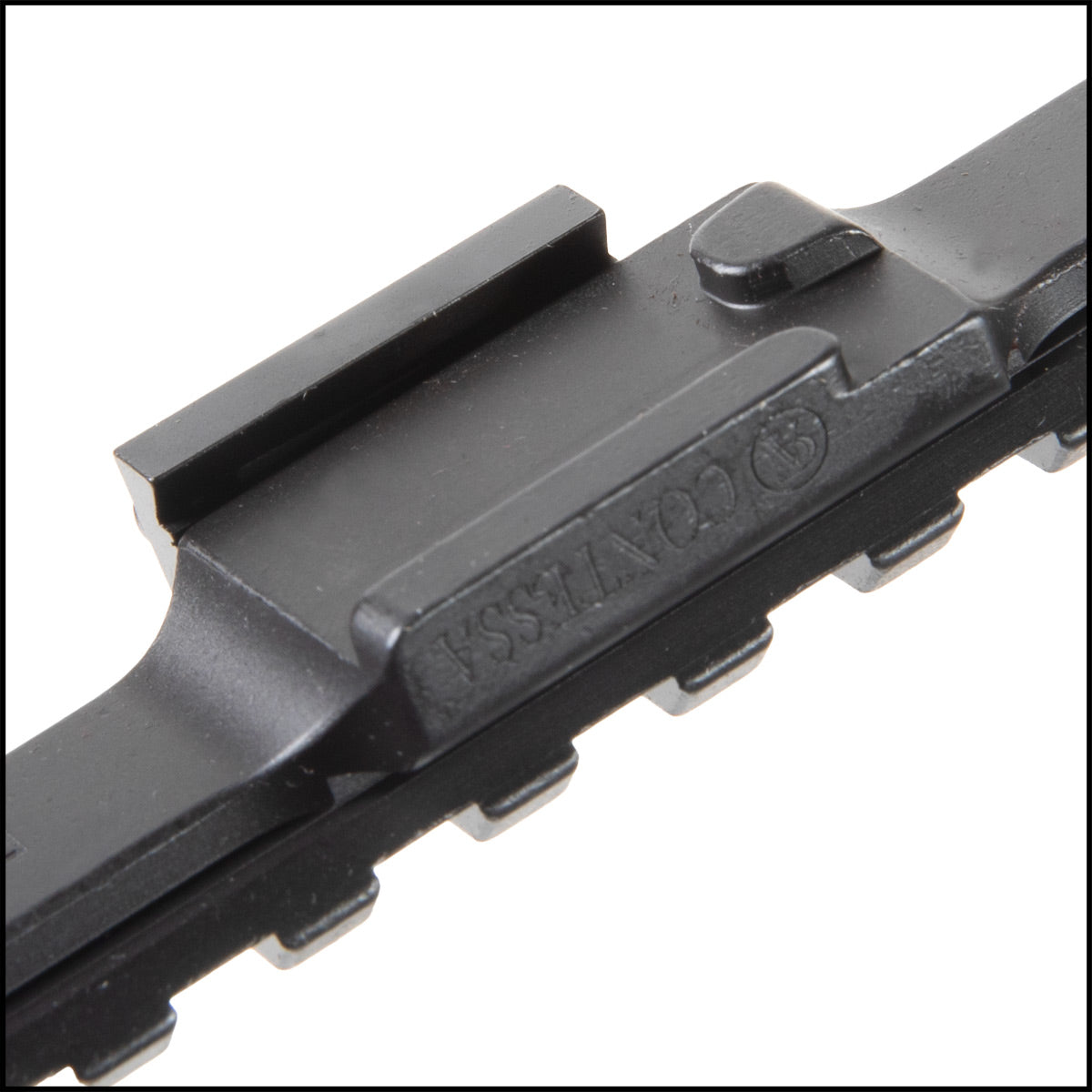

This rail clamps on to the Sako 90 action using the two clamping bases. Each clamping base has two screws to tighten up. Firstly make sure all of the screws are slackened so the rail can fit onto the rifle. On the rear of the rail, there is a recoil lug, which locates on rifle. Press the rifle rearwards to fully locate the recoil lug into the recoil recess and tighten up the screws evenly.
