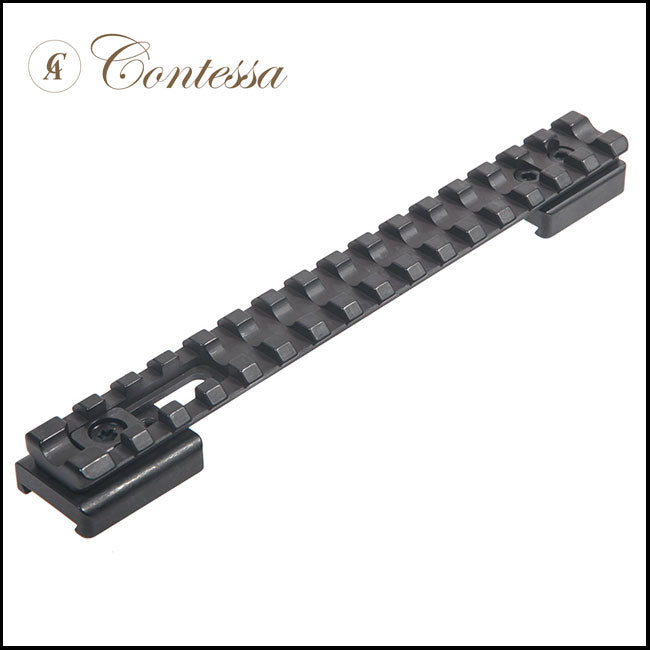

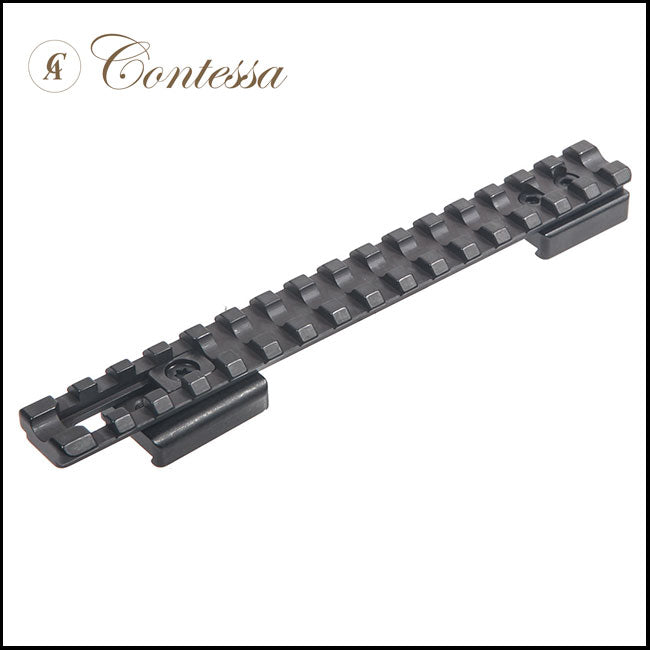

Contessa Picatinny Rail for Sako 75/85 Long (Adj)
Contessa Picatinny Rail for Sako 75/85 Long (Adj)
Contessa Picatinny Rail for Sako 75 / 85 Long
With 0 MOA
Adjustable to fit various model variations
Primarily fits Sako Models: 75 / 85 but can also fit older models using the Sako tapered dovetail system too.
Fits Calibres: .300 Win Mag / .338 Win Mag / .375 H&H Mag / 7mm Rem Mag
Also the XL, Extra Long 85 Models: .338 Lap Mag, .416 Rigby, .450 Rigby, .500 Jeffrey
(Please always double check the action size as this is a guide)
Rail Length: - 170mm

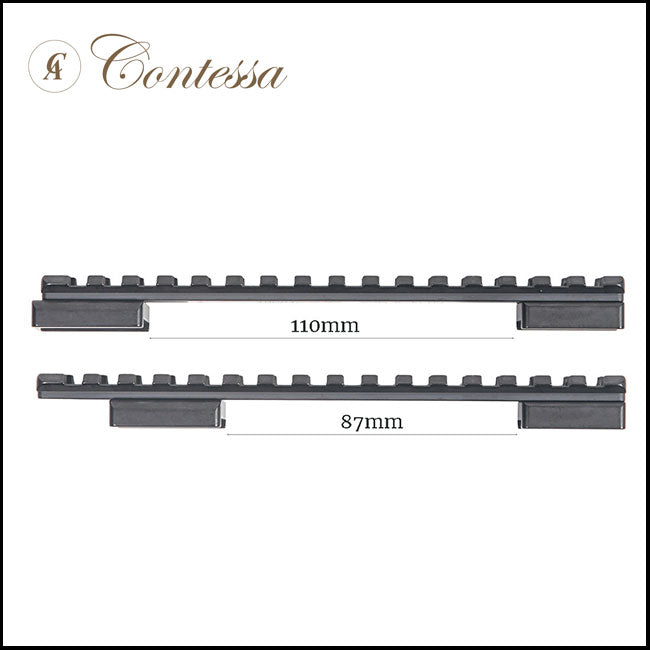

Distance between Bases: - 87mm - 110mm
Height (BH) - 12.5mm
MOA - 0 MOA
Material: - Steel
Code Ref: PH14N/0
Contents Supplied:
- 1x Steel Rail,
- 1x Rear Base,
- 1x Front Base,
- 3x Wrench,
- Fitting Screws all included

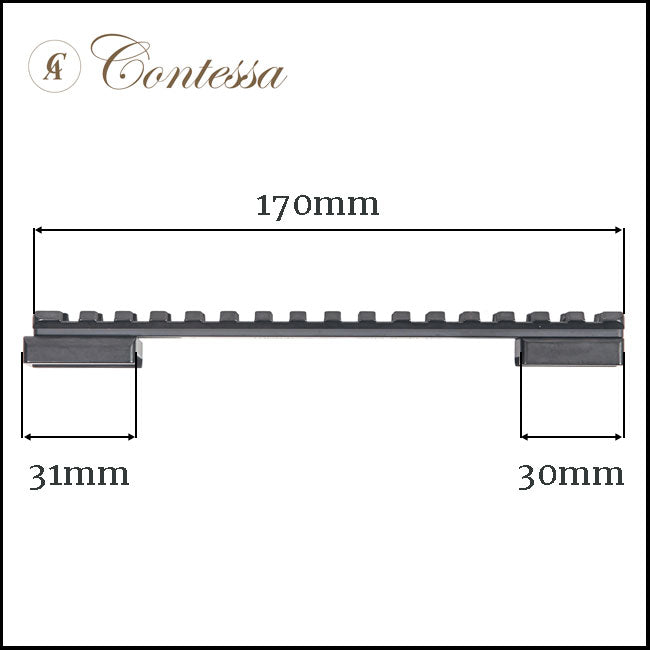

Distance Spacing: (distances between bases)
30mm (Dovetail Base) / 87 - 110mm / 31mm (Dovetail Base)

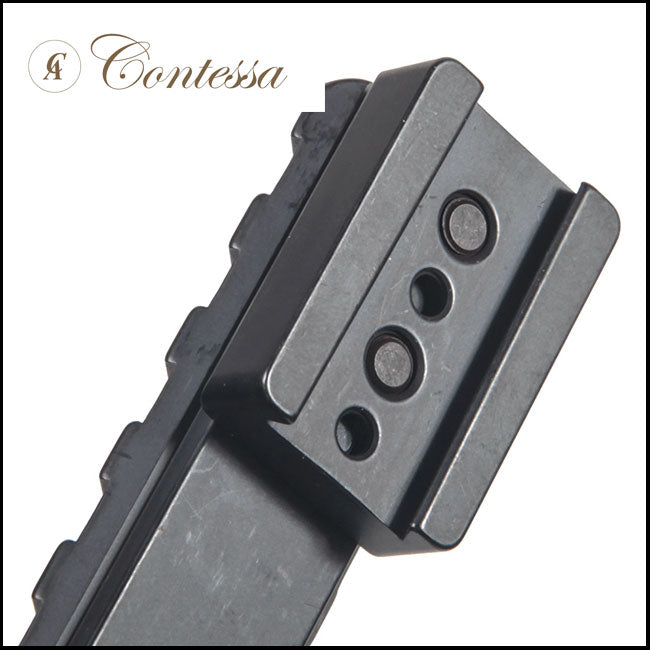

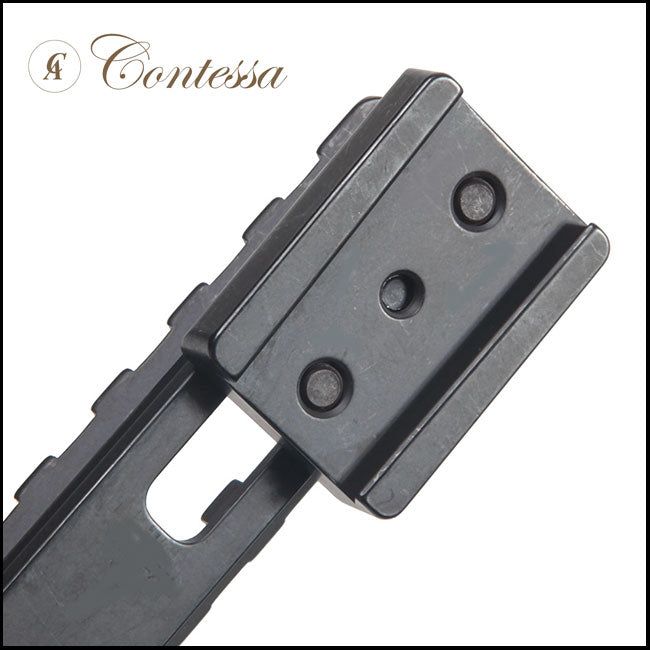

This Steel Picatinny Rail is precision made by Contessa Alessandro & C. s.n.c. The mount is precision made to fit the Sako Tapered Dovetail System. Supplied as components, the separate bases are mounted to the rifle and locked in place with vertical locking screws (we do suggest giving the bases a firm tap with a plastic hammer to make sure they're fitted on fully).

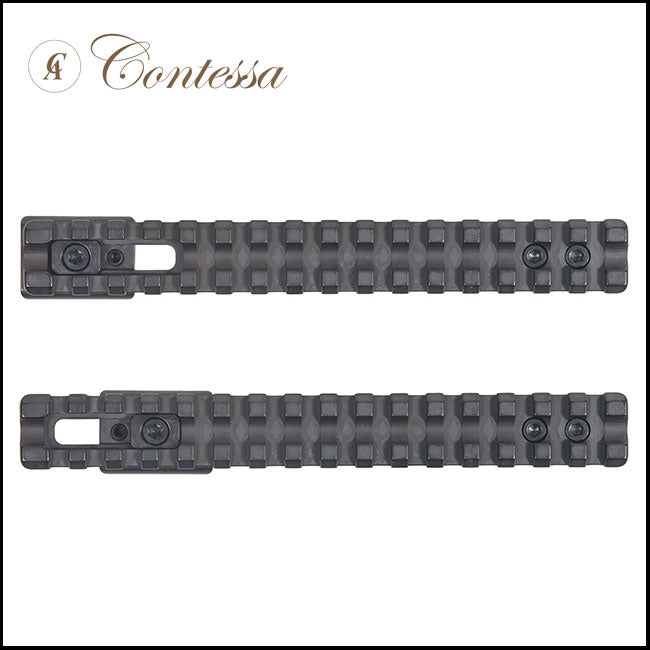

Then the picatinny rail is attached to the bases using the screws provided. As the picatinny rail is adjustable in length, provided the bases on your Sako are between 87mm and 110mm apart, the rail will be able to fit.
Fitting:
The independent front and rear bases slide onto the Sako dovetails, then are tightened to the action using locking screws from the top of the base. Once the bases are fitted, the length of picatinny fits over the top of them and is screwed on to the bases to secure them in place. Using thread locker adhesive to ensure the screws don't loosen under recoil can be used if required.
