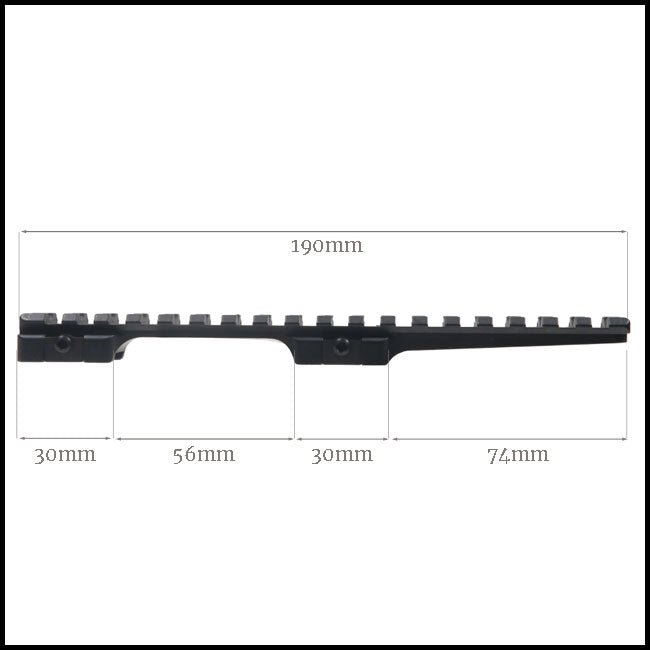

Contessa Extended Picatinny Rail for Sako 75/85 X-Short

Contessa Extended Picatinny Rail for Sako 75* / 85 X-Short
With 0 MOA
Fits Sako Models: 75 / 85
Fits Calibres: .204 Ruger / .222 Rem / .223 Rem
(Please always double check the action size as this is a guide for the action size)

Rail Length: - 185mm
Extension Rearwards: - 50mm
Distance between Bases: - 50 - 73mm
Height (BH) - 12mm
MOA - 0 MOA
Weight: - 205g
Material: - Steel
Code Ref:
Adjustable Version - PH31/NV/ADJ
Fixed Version - PH31/NV/FX

Contents Supplied:
- 1x Steel Rail,
- 1x Rear Base,
- 1x Front Base,
- 1x Wrenches,
- Fitting Screws all included

This Steel Picatinny Rail is precision made by Contessa Alessandro & C. s.n.c. The mount is precision made to fit the Sako Tapered Dovetail System. Supplied as components, the separate bases are mounted to the rifle and locked in place with vertical locking screws (we do suggest giving the bases a firm tap with a plastic hammer to make sure they're fitted on fully). This is the Extended Version designed to be used with scopes such as night vision, which need to be mounted rearwards for better eye relief.

You can't always tell which size Sako action you have from the calibre, so to check which rail fits your rifle all you need to do is measure the length between your two bases, i.e. measure the length of your ejection port.
If it's approx. 56mm you need the Sako X-Short Rail
74mm you need the Sako Short Rail.
If it's approx. 84mm you need the Sako Medium Rail.
If it's approx. 94mm you need the Sako Long Rail.

Distance Spacing: (distances between bases)
30mm (Dovetail Base) / 50 - 73mm / 31mm (Dovetail Base)

This Steel Picatinny Rail is precision made by Contessa Alessandro & C. s.n.c. The mount is precision made to fit the Sako Tapered Dovetail System. Supplied as components, the separate bases are mounted to the rifle and locked in place with vertical locking screws (we do suggest giving the bases a firm tap with a plastic hammer to make sure they're fitted on fully).
Then the picatinny rail is attached to the bases using the screws provided. As the picatinny rail is adjustable in length, provided the bases on your Sako are between 50-73mm apart, the rail will be able to fit.

Fitting:
The independent front and rear bases slide onto the Sako dovetails, then are tightened to the action using locking screws from the top of the base. Once the bases are fitted, the length of picatinny fits over the top of them and is screwed on to the bases to secure them in place. Using thread locker adhesive to ensure the screws don't loosen under recoil can be used if required.
