Contessa Eurorail Ring Mount, Quick Release

Contessa Quick Release Ring Mount for Bolt Action Rifles
Designed to fit the 12mm Euro Rail Base.
Quick Release & Attach / Guaranteed Zero

Quick Release Rail Mount including optional Euro Rail Base for a variety of rifles and with ring options of either 1", 30mm, 34mm, 36mm or 40mm, with various heights in each diameter.

This Quick Release Ring Mount Rail is made by Contessa Alessandro & C. s.n.c. The parts are precision made in Italy. The Contessa Quick Release Rails will attach to the Contessa Euro Rail Bases, which are made to fit individual rifle models

Rail Length: - 117mm
Height (BH) of Mount - 12.1mm (Without Rail Base)
+ Ring Height Choice, 2.5mm / 5.0mm / 7.5mm
Weight: - 225g
Code: - SB02
Materials:
- Non Moving Parts: Hard Anodised Light Alloy called Ergal 7075
- Moving Parts: Hardened Compound Steel

PLEASE NOTE:
This Mount will fit Contessa EURO RAIL BASE Rails only.

Contents Supplied:
- (Optional) 1x Fixed Base for Bolt Action Rifles
- 1x Simple Black (Square) Rail Base,
- 2x Rings,
- 2x Ring Screws,
- Wrenches for fitting

Bolt Action Rifle Models Available:
- Anschutz 11mm Dovetail Rifles
- Browning X-Bolt Short
- Browning X-Bolt Long
- CZ 550
- Remington 700 Short
- Merkel Helix
- Sako 75 / 85
- Sauer 202 Standard
- Sauer 202 Magnum
- Tikka T3
- Winchester Mod 70 Short
- Winchester Mod 70 Long

Ring Options:
- 1 Inch, Low, 2.5mm
- 1 Inch, Medium, 5.0mm
- 1 Inch, High, 7.5mm
- 30mm, Low, 2.5mm
- 30mm, Medium, 5.0mm
- 30mm, High, 7.5mm
- 34mm, Medium, 6.5mm
- 34mm, High, 8.0mm
- 36mm, Medium, 5.0mm
- 40mm, Medium, 6.0mm

This system allows you to interchange multiple scopes on a single rifle, and even change a single scope to different rifles in seconds using the Contessa Quick Release system. You will need the Contessa Euro Rail Base fitted to any rifle you wish to mount the Quick Release Mount to.

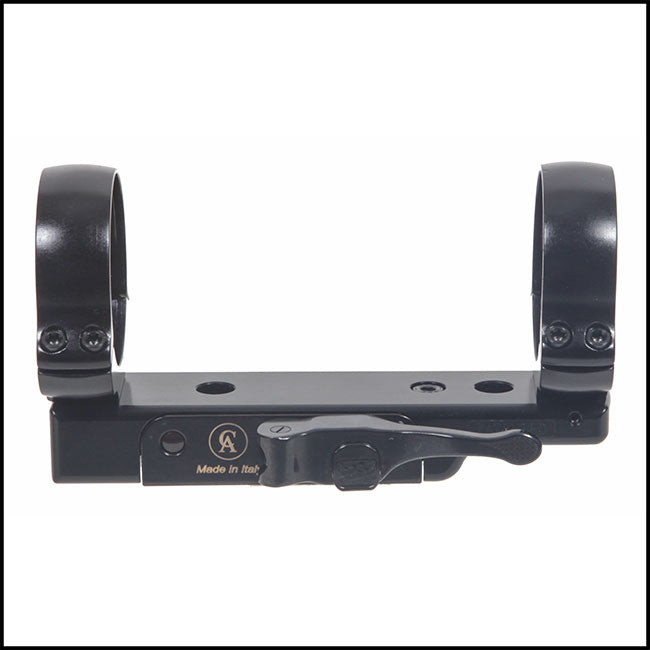

This system also benefits from multiple ring positions. There are 4 Ring Lug holes on this mount which may come in useful when mounting certain types of scope. As you can also see from the picture, the rear Ring Lug is elongated and designed to allow windage adjustment by adjusting the side grub screws.

The Contessa Euro Rail System -
Find Out More and How it Works
