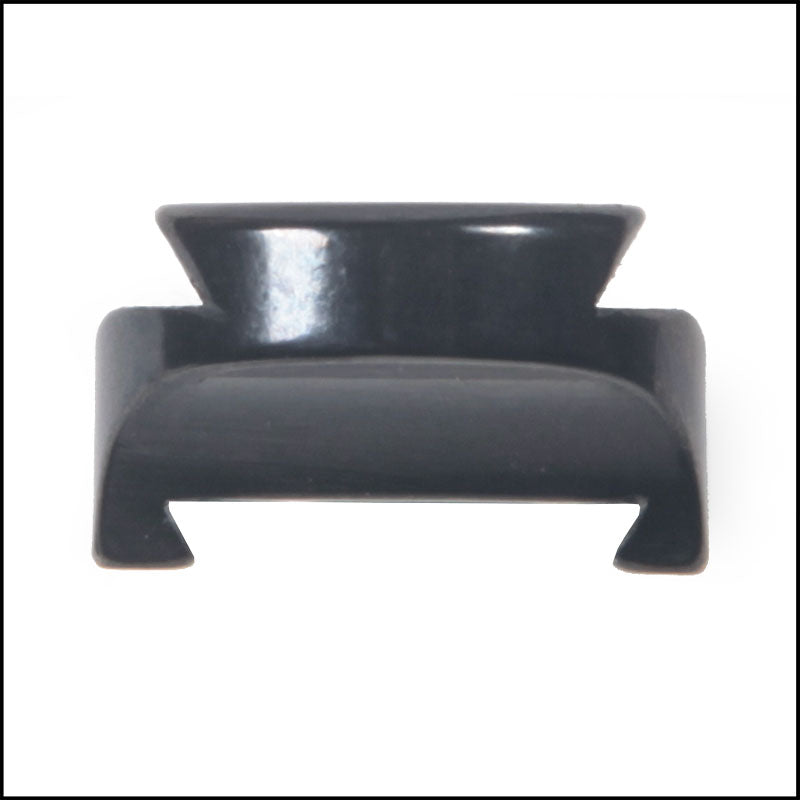

Contessa Browning CZ 452/455 Euro Rail Base for Quick Release Mount

Contessa CZ 452/455 - 11mm Dovetail Rifles
Euro Rail Base for use with Quick Release Mounts

Length: - 133mm
Weight: - 70g
Height - 7mm BH
Code: SW03
Material:
Blued Steel

The rail slides on to the CZ 452 or 455 action from the rear. The recoil stud prevents the rail from moving further forward. This can be removed from the rail if needed. Once the rail is in position, two locking screws on the rail are tightened up to fix the rail in position. The width of the dovetail is 11mm. Please check your CZ rifle as there are variations in models with wider dovetails of +12mm, which means this mount will not fit.

Note: This mount is designed to fit the CZ 452 and 455 actions. You can see how the cut-out section on the rail matches the ejection port on the rifle. This does not prevent ejection but can hinder it in the forward or rearward position, and you may experience the case clipping the rail on the way out.

This Quick Release Base is precision made by Contessa Alessandro & C. s.n.c. The fixed base is made to fit directly to your rifle, then you use the Contessa Quick Release Base, either one of the possible models available, and using it's QD clamping system you can attach the mount to the base. This system allows you to interchange scopes on a single rifle, and even change a scope to different rifles in seconds using the Contessa system.

The Contessa Euro Rail System -
Find Out More and How it Works

Contents Supplied:
- 1x Fixed Base Rail,
- Wrench
- Screws

The Contessa Catalogue has the full range of products available. If you would like any help with parts or fitting, feel free to call us on 01978 66 00 01. We can offer advise on the best possible solution, and a high quality scope mounting service.
