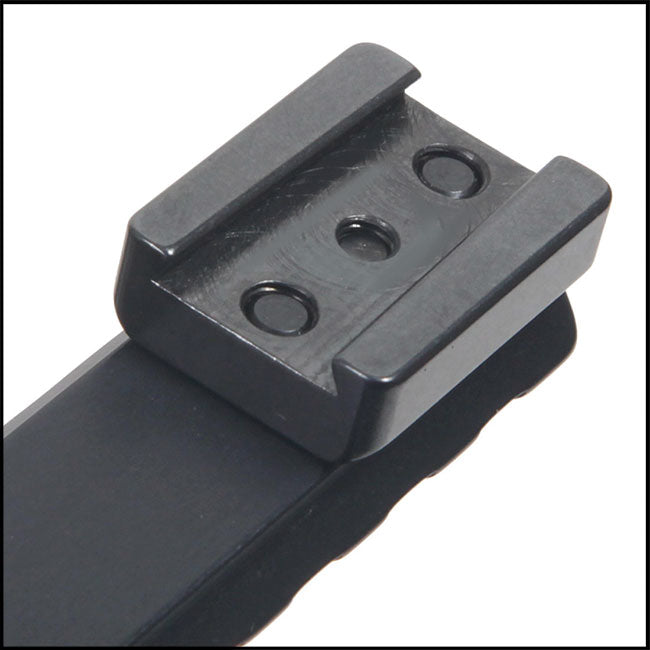

Recknagel Picatinny Rail for Sako 75/85
Recknagel Picatinny Rail for Sako 75/85
Recknagel Aluminium Picatinny Rail for Sako 75/85
Black anodised
Will fit Sako 75 / 85
Rail Length: - 132mm (X-Short/Short) / 160mm (Medium/Long)
Height of Base - 12.5mm
Weight: - 94g
Codes:
Sako 85 X-Short/Short, 0 MOA - 57050-0014
Sako 85 X-Short/Short, 20 MOA - 57050-2014
Sako 85 Medium/Long, 0 MOA - 57050-0114
Sako 85 Medium/Long, 20 MOA - 57050-2114
Contents Supplied
- 1x Black Anodised Rail
To mount the rail, separate the rail from the tapered bases. Push the bases onto the Sako receiver and tighten the two vertical locking grub screws to hold in the bases in place. Remount the rail onto the bases.
Dimensions of Adjustments (X-Short/Short):
The Rail Length is 132mm.
Bases Length: 21mm
Bases Center to Center: Adjustable from 83mm to 121mm
Distance Between Bases: Adjustable from 59mm to 92mm
Dimensions of Adjustments (Medium/Long):
The Rail Length is 160mm
Bases Length: 21mm
Bases Center to Center: Adjustable from 111mm to 143mm
Distance Between Bases: Adjustable from 82mm to 113mm
Always check the measurements on your rifle before ordering.
Please Note that some Sako 75 actions have quite high tolerances and for that reason it is possible that the mount will be tight on the cone. We have to make it this way as a loose mount will not hold zero. Some hand fitting may be required. This is easily done and we can advise on the correct method should you experience this problem. If you are not experienced or competent in this work, please contact us or send it back for a full refund. If you attempt to make alterations to this rail, please be aware that once the mount has been altered, we are unable to provide a refund or accept a return.
